Home ProductsLDM Series-PP PE Film Compacting Granulator

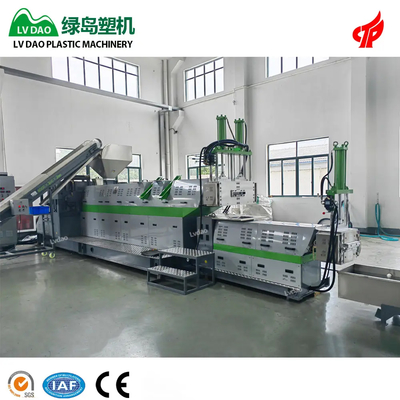

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer

  • Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer
  • Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer
  • Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer
  • Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer
  • Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer
  • Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer
  • Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer
Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer
Product Details:
Place of Origin: Zhejiang, China
Brand Name: Lvdao
Contact Now
Detailed Product Description
Plastic Processed: HDPE, HDPE/PP, PA, PE/PP, Lldpe, Polystyrene, ABS/PP, EVOH, Wood-plastic, PPR, PP, FRPP/PVC, PVC, MLLDPE, LDPE, ABS, PET, EVA, PC, Polylactic Acid, EPS Output (kg/h): 800 - 1000 Kg/h
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Core Components: Gearbox, Motor, Inverter Screw Design: Single Screw
Voltage: Customized Dimension(l*w*h): 20000*1500*3000mm
Power (kw): 220 Warranty: 1 Year
Weight (KG): 5000 Model: LDM-SJP-180
Applicable Material: PP PE Film And Woven Bag Capacity: 800-1000kg/h
Screw Diameter: 180mm Motor Power: 220kw
Screw Long Dia. Ratio: 33:1 Screw Rotate Speed: 10-90r/min
Color: Green And White End Product: Plastic Granules

Product Description

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 0

Features:

1.For film and woven bags recycling and pelletizing.

2.Highly automated, directly feed without crushing in advance.

3.Provide water strap,double-stage and vacuum exhaust according to your requirement.

Parameter table:

Model

Screw diamater

Long

dia ratio

Output

(kg/h)

Screw rotate speed(r/min)

Main

Power (kw)

Agglomerator Power (kw)

LDM-SJP-85

Φ85

33:1

200-230

10-90

55

37

LDM-SJP-100

Φ100

33:1

250-300

10-90

75

55

LDM-SJP-130

Φ1130

33:1

450-500

10-90

132

90

LDM-SJP-160

Φ160

33:1

600-700

10-90

160

110

LDM-SJP-180

Φ180

33:1

800-1000

10-90

220

132

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 2Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 4Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 6

 Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 8Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 10Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 12

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 14



Company Information

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 16

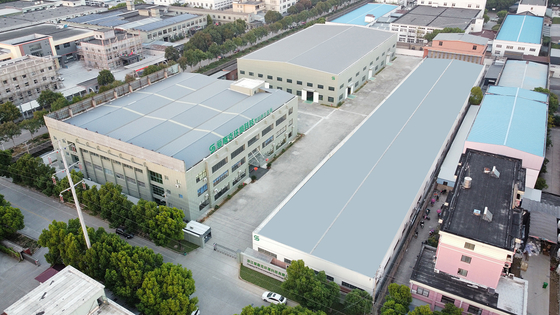

Yuyao lvdao plastic and rubber machinery Co.,Ltd.(lvdao plastic machinery) is a professional manufacture of plastic Recycling machine and pelletizing extrueder,and it has been in the plastic Recycling field for almost two decades.



    Our branch Office put into operation in August 2011.The site covers an area of twenty thousand square meters.We have modern technology center and all kinds of processing equipment with testing facilities. Our company always take customer satisfaction as purpose,customers constantly support and identity. Always continue expanding our market and promoting our technology progess.

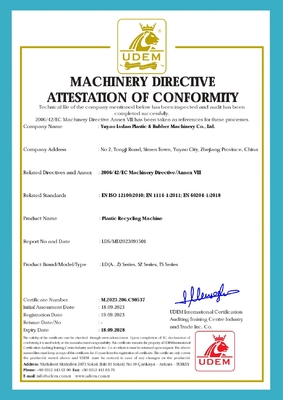

    Our equipment have already had many invention patents now. Passed ISO9001:2008 certification. The plastic pelletizing unit has passed the CE authentiction security. In 2007 our LDA series are on national torch plan projects. In2008 Our company was awarded the ningbo high-tech enterprises.And the company take the national innovation fund projects in 2009.

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 18

Packaging & Shipping

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 20

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 22

Exhibition

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 24

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 26

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 28

Compactor Type PP PE Film Woven Bag Recycle Plastic Granules Making Pelletizing Machine Pelletizer 30



Our Services

In-sale services:
1.We supply a series of machine about plastic pelletizing;
2.Accroding to various kinds of material and output, we will provide suitble pelletizing line for you. In case you spend extra money.
3.We can provide machine tests of the whole line if you can send the raw material. Therefore, you can know the condition of machine on the spot or by video we send you.

After-sale services:
1.Engineer service to the customer and training the workers for client;
2,We have 24-hour team to solve the after-sale problem;
3.We have free spare parts with the machine;
4.We always update the new technology to every customer;
5.One year warranty for our machine(except quick-wear parts),under the normal use.

FAQ

Q:Are you machinery factory or trading company?

A:We are machinery factory with 20 years experience in Ningbo. And we can export machines by ourselves.



Q: Which kind of machine do you make?

A: We mainly produce plastic recycling machine,pelletizing machine and other auxiliary machine , according to the different raw material, different output and different industrial voltage in working place,you can choose different machines.



Q:  How can we visit your company and machines?

A:Our factory is located in Ningbo City,near Shanghai and Hangzhou. About 3 hours away from Shanghai International Airport.



Q:Can you customized machine?

A:We can make the products following the customers' requirement,like the shape,size,color,logo and other spec details.
