PE Films Agglomerator Machine Recycling Plastic Granules Making Machine

PE Films Agglomerator Machine Recycling Plastic Granules Making Machine

  • PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
  • PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
  • PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
  • PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
  • PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
  • PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
Product Details:
Place of Origin: Zhejiang, China
Brand Name: lvdao
Contact Now
Detailed Product Description
Plastic Processed: HDPE, LDPE Output (kg/h): 200 - 230
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Core Components: Motor, Gearbox Screw Design: Single Screw
Voltage: Customized Dimension(l*w*h): 10000*1500*3000mm
Power (kw): 55 Warranty: 1 Year
Weight (KG): 5000 Screw Diameter: 85mm
Screw Long Dia. Ratio: 33:1 Screw Rotate Speed: 10-90r/min
Color: Green And White End Product: Plastic Granules

Product Overview

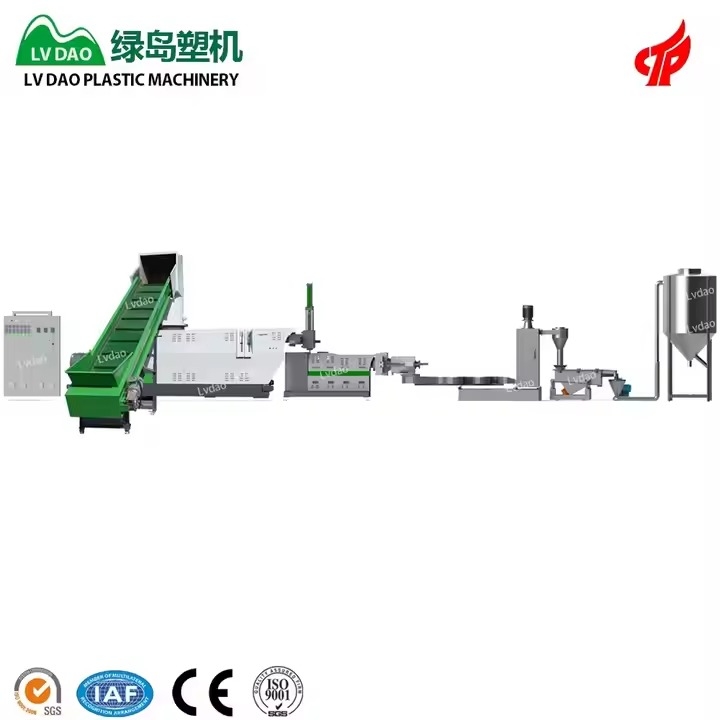

PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 0

LDM plastic pelletizing Film machine

Usage:
For film and woven bags recyling and pelletizing.
Features:
LDM highly automated directly feed without crushing in advance
Provide water strap,double-stage and vacuum exhaust according to your requirement.
Products Description

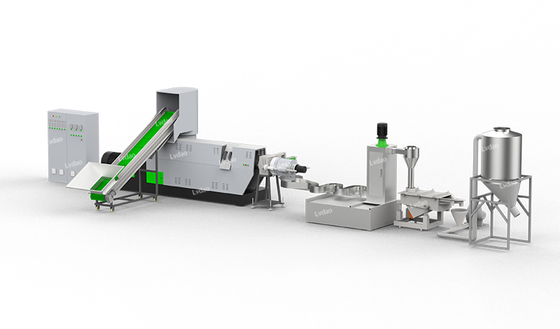

PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 2

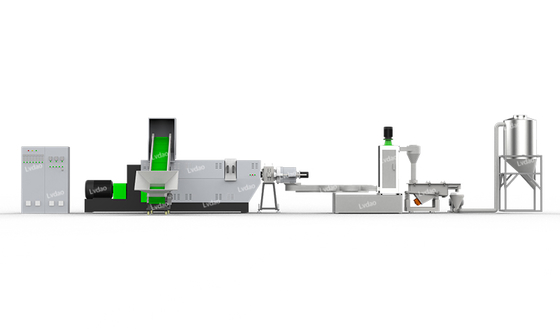

PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 4

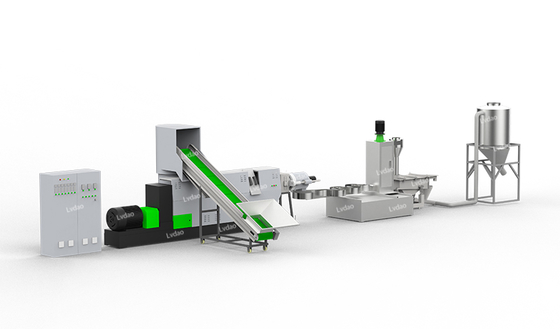

PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 6
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 8

Inverter

V&T inverter or SINEE inverter
Control the speed of screw to protect it
From 0.75kw-250kw
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 10

Gearbox

Shuangguang brand
Hard teeth surface
From ZLYJ112 -ZLYJ450

PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 12

Screw and barrel

Made of high grade 38CrMoAIL
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 14

Hopper

For storage pellets
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 16

Screen changer

Hydraulic/Electric/Manual
Double filters for unstop running
Easy to change the mesh
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 18

Oil station

Suit for hydraulic screen changer
Use #45 oil

Product Paramenters
Model
Screw dia.(mm)
Long dia. ratio
Output(kg/h)
AgglomeratorPower(kw)
Rotate speed(r/min)
LDA-85
Ø85
 33:1
200-230
37
10-90
LDA-100
Ø100
33:1
250-300
55
10-90
LDA-130
Ø130
33:1
450-500
90
10-90
LDA-160
Ø160
33:1
600-700
110
10-90
LDA-180
Ø180
33:1
800-1000
132
10-90
Company Profile
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 20

Yuyaolvdao plastic and rubber machinery Co., LTD. specializing in the production of plastic recycling machine line has a history of more than 20 years in the plastic equipment industry, In the plastic equipment manufacturing industry in a leading position.
Our company set up a factory in 1996, under the leadership of professional research and development team, down-to-earth,continuous exploration, according to the different characteristics of various plastic materials to develop a batch of new products, maximize to meet the needs of customers.
In August 2011, the branch company was put into operation, covering an area of nearly 20,000 square meters, realizing leap-forward development.At the same time.We have also added more advanced processing equipment and testing systems, creating a modern technology control center.More importantly, the company introduced professional talents, reorganized the research and development team, and laid a good foundation for the company's long-term development.
At present, our equipment has a number of invention patents, prilling machine through CE safety certification, LDA series recycling machine included in the 2007 national torch plan project, in 2008 the company was rated as ningbo high-tech enterprise, in 2009 the company undertook the national innovation fund project.In 2011,we once again approved as a high-tech enterprise and finished Nation’s Fund Project.In 2013,we attend K show in Germany.In 2015,we are invited by CCTV. In 2017, the company spent millions on metal laser cutting machines.In 2019, a special welding arm was introduced.
Over the past ten years, the company has always adhered to customer satisfaction as the purpose, guided by the market situation, for China's plastic products recycling has made a great contribution.In the future, we will continue to uphold this purpose and make preparations for further opening up the international market.
Product packaging
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 22
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 24
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 26
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 28
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 30
Exhibition
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine 32
FAQ
Q:Are you machinery factory or trading company?
A:We are machinery factory with 20 years experience in Ningbo. And we can export machines by ourselves.

Q: Which kind of machine do you make?
A: We mainly produce plastic recycling machine,pelletizing machine and other auxiliary machine , according to the different raw
material, different output and different industrial voltage in working place,you can choose different machines.

Q: How can we visit your company and machines?
A:Our factory is located in Ningbo City,near Shanghai and Hangzhou. About 3 hours away from Shanghai International Airport.

Q:Can you customized machine?
A:We can make the products following the customers' requirement,like the shape,size,color,logo and other spec details.
