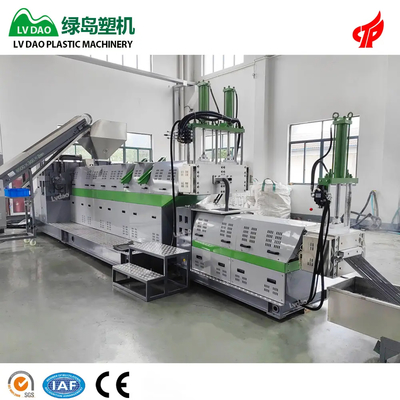

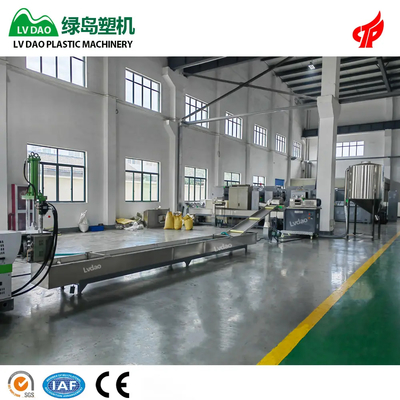

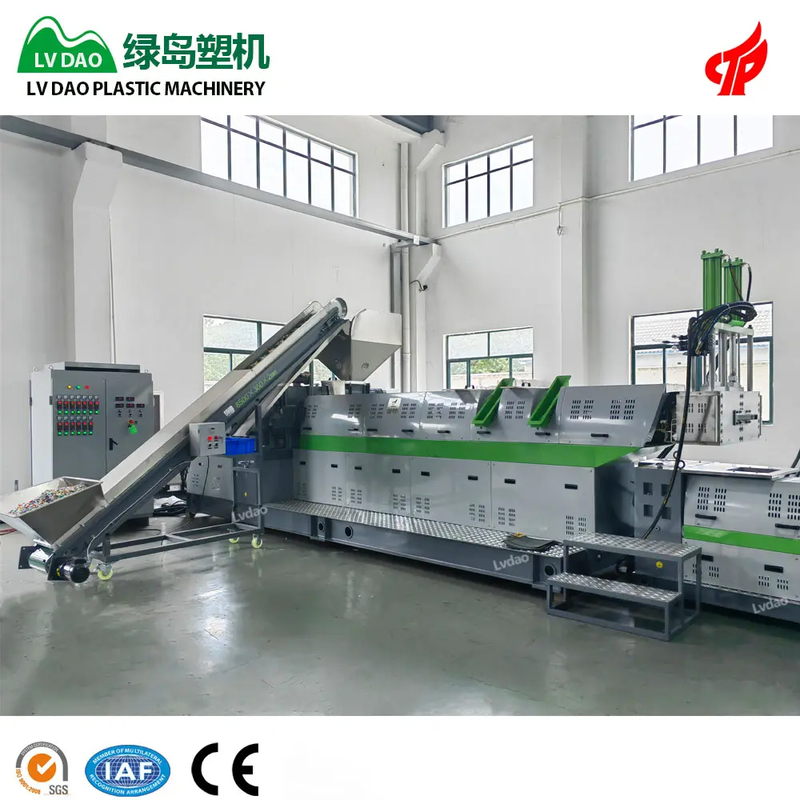

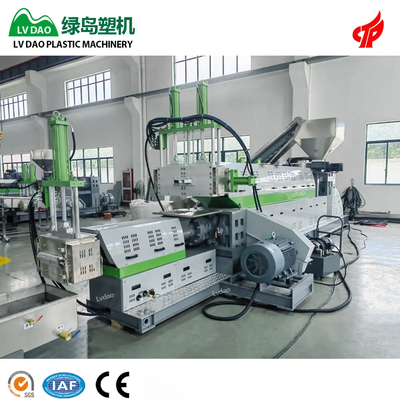

Name: Plastic Pelletizing Machine Production Line Plastic Recycling Pelletizer for LDPE PP HDPE Flakes
Brand: Yuyao Lvdao Plastic & Rubber Machinery Co., Ltd.
Availability: InStock

Home Products LDD Series- Double Stages Pelletizing Machine

Plastic Pelletizing Machine Production Line Plastic Recycling Pelletizer for LDPE PP HDPE Flakes

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Lvdao

Contact Now

Detailed Product Description

Plastic Processed:	HDPE, HDPE/PP, PA, PE/PP, Lldpe, Polystyrene, ABS/PP, EVOH, Wood-plastic, PPR, PP, FRPP/PVC, PVC, MLLDPE, LDPE, ABS, PET, EVA, PC, Polylactic Acid, EPS	Output (kg/h):	250 - 300 Kg/h
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Gearbox, Motor	Screw Design:	Single Screw
Voltage:	Customized	Dimension(lwh):	2000015002500
Power (kw):	45	Warranty:	1 Year
Weight (KG):	5000	Model:	LDD-SJP-120-110
Screw Dia.:	120mm,110mm	Long Dia. Ratio:	28:1,10:1
Output:	200-250kg/h	Power:	45/15kw
Rotate Speed:	10-75r/min	Name:	Plastic Recycling Machine
Raw Material:	PP PE ABS PC PET	Final Product:	Clean Plastic Granules
Color:	Customer Choice

Product Overview

YouTube：

https://youtu.be/ASEGhHzlT2E?si=29I6aqa_r52tF1O0

Usage:
This machine can process a variety of thermoplastic plastics,such as PC,PA,PP,ABS,PE,POM,PET etc. Different from LDC series, this kind of machine has two even three stages.
Features:
LDD series is used for PP PE ABS PA PS PET crushed material extruding and granule-making. It adopt the two-step structure to meet the the double-layer filter purpose. It can effectively remove the impurities from the recycling material and fully exhaust the gas.It can produce ample,consolidated and fine luster granules.

Product Paramenters

Model	Screw dia.(mm)	Long dia. ratio	Output(kg/h)	Power(kw)	Rotate speed(r/min)
LDD-SJP-80-70	Ø80,Ø70	28:1,10:1	50-100	18.5/7.5	10-75
LDD-SJP-90-85	Ø90,Ø85	28:1,10:1	100-150	22/7.5	10-75
LDD-SJP-100-95	Ø100,Ø95	28:1,10:1	150-200	30/11	10-75
LDD-SJP-110-105	Ø110,Ø105	28:1,10:1	200-250	37/11	10-75
LDD-SJP-120-110	Ø120,Ø110	28:1,10:1	250-300	45/15	10-75
LDD-SJP-130-120	Ø130,Ø120	28:1,10:1	300-350	55/15	10-75
LDD-SJP-140-130	Ø140,Ø130	28:1,10:1	350-400	75/18.5	10-75
LDD-SJP-150-140	Ø150,Ø140	28:1,10:1	400-450	90/22	10-75
LDD-SJP-160-150	Ø160,Ø140	28:1,10:1	450-500	110/30	10-75
LDD-SJP-180-160	Ø180,Ø160	28:1,10:1	500-600	132/37	10-75
