Product Details:
Place of Origin: Zhejiang, China
Brand Name: lvdao
Contact Now
Detailed Product Description
Plastic Processed: PE, HDPE, HDPE/PP, PE/PP, Lldpe, Polystyrene, PP Output (kg/h): 400 - 500
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Core Components: Motor, Gearbox Screw Design: Single Screw
Voltage: Customzied Dimension(l*w*h): 15000*1500*2500
Power (kw): 132 Warranty: 1 Year
Weight (KG): 6000 Application: Waste Plastic Recycling
After-sales Service Provided: Service Machinery Overseas Rotate Speed(r/min): 10-60r/min
Power(W): 132/37 Long Dia.ratio: 16:1 10:1
Screw Dia.(mm): 250mm-180mm Key Selling Points: Long Service Life
Screw Material: 38CrMoALA Application: 3mm Plastic Granules

Product Overview

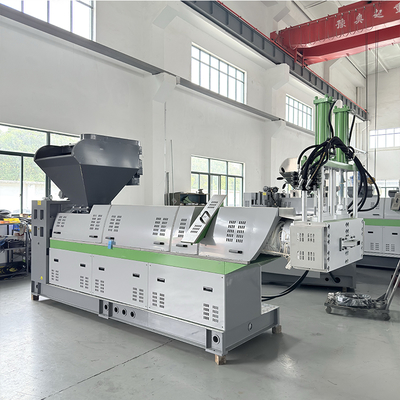

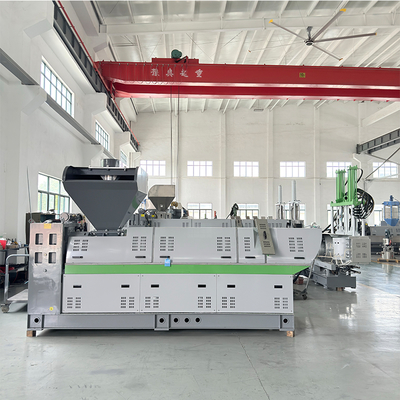

LDF series plastic pelletizing machine

Usage:
Special design screw and barrel,it's suitable for the wet film, heating system modify the processing environment andf improve the quality of the products.
Features:
This machine is suitable for recycling wet film after crushing and washing,cancel the step of drying materials. Time and power saving,highly automatic and improve the work efficiency greatly. Optional accessories of the first extruder:electric magnetic heating system.
Products Description
400-500kg/h Waste Plastic Film Recycling Plastic Recycling Production Line Pe Wet Film Recycling and Granulation Extruder 0
400-500kg/h Waste Plastic Film Recycling Plastic Recycling Production Line Pe Wet Film Recycling and Granulation Extruder 2

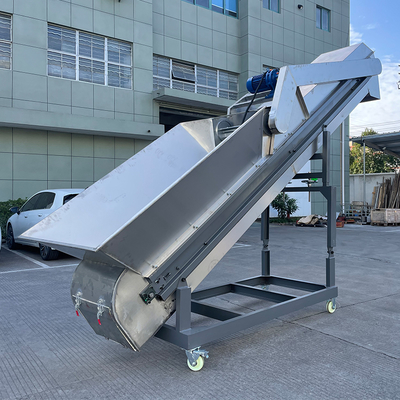

Convey belt:
Function:make the crushed material convey to the feeder

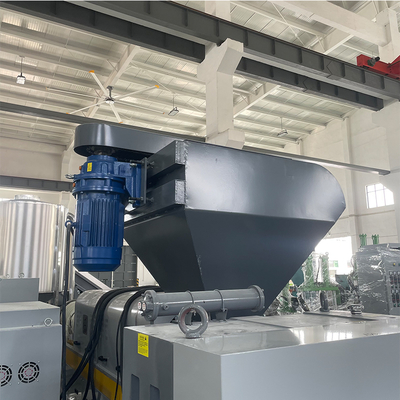

Wet film feeder:
Function:The raw material is evenly and stably transported to the main screw.
400-500kg/h Waste Plastic Film Recycling Plastic Recycling Production Line Pe Wet Film Recycling and Granulation Extruder 4
400-500kg/h Waste Plastic Film Recycling Plastic Recycling Production Line Pe Wet Film Recycling and Granulation Extruder 6



Double hydraulic screen changer
Function:filtering the impurity from the plastic



Baby extruder
The Screw and barrel made of high grade 38CrMoAIL.The baby extruder also have gear box,motor and heater.
Function:Melting and mixing the plastic again , double filtering of the plastic
400-500kg/h Waste Plastic Film Recycling Plastic Recycling Production Line Pe Wet Film Recycling and Granulation Extruder 8
400-500kg/h Waste Plastic Film Recycling Plastic Recycling Production Line Pe Wet Film Recycling and Granulation Extruder 10





Water cooling
Function:cooling the strip by water



Plastic pelletizing
Packing silo with conveying blower
Function:Make the pellet
Function:conveying the pellet into packing storage silo
400-500kg/h Waste Plastic Film Recycling Plastic Recycling Production Line Pe Wet Film Recycling and Granulation Extruder 12
Working Flow:
Feeding system→ Main extruder →Main machine screen changer→Baby extruder →Baby machine screen changer→Water cooling tank→Air blow→ Plastic pelletizing→ Packing silo with conveying blower
Product Paramenters
Model
Screw dia.(mm)
Long dia. ratio
Output(kg/h)
Power(kw)
Rotate speed(r/min)
LDF-SJP-125-105
Ø125,Ø105
 16:1,10:1
100-120
30/15
10-60
LDF-SJP-145-110
Ø145,Ø110
 16:1,10:1
160-200
45/18.5
10-60
LDF-SJP-160-120
Ø160,Ø120
 16:1,10:1
200-250
55/22
10-60
LDF-SJP-180-130
 Ø180,Ø130
 16:1,10:1
220-270
75/30
10-60
LDF-SJP-215-150
 Ø215,Ø150
 16:1,10:1
250-300
90/30
10-60
LDF-SJP-250-180
Ø250,Ø180
 16:1,10:1
400-500
132/37
10-60
