Name: Pe Pp HDPE LDPE Film Bag PET Plastic Crush Washing Line Recycling Machine for Waste Plastic and Nylon Recycling Plant 317
Brand: Yuyao Lvdao Plastic & Rubber Machinery Co., Ltd.
Availability: InStock

Home Products LDA Series-Dry Film Automatic Crushing & Loading

Pe Pp HDPE LDPE Film Bag PET Plastic Crush Washing Line Recycling Machine for Waste Plastic and Nylon Recycling Plant 317

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	LVDAO
Certification:	CE ISO

Contact Now

Detailed Product Description

Plastic Processed:	PA, PE/PP, ABS/PP, PPR, PP, PVC, ABS, PET, EVA, PC, EPS	Output (kg/h):	300 - 350 Kg/h
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Gearbox, Motor	Screw Design:	Single Screw
Voltage:	380V, 110V, 220V	Power (kw):	73.5
Warranty:	1 Year	Weight (KG):	5000
After-sales Service Provided:	Field Maintenance And Repair Service	After Warranty Service:	Online Support
Local Service Location:	None	Feeder:	Force Feeder
Material Processed:	Film	Plastic Type:	PP/PE
Weight:	5-10T	Power(W):	55/18.5kw

Product Overview

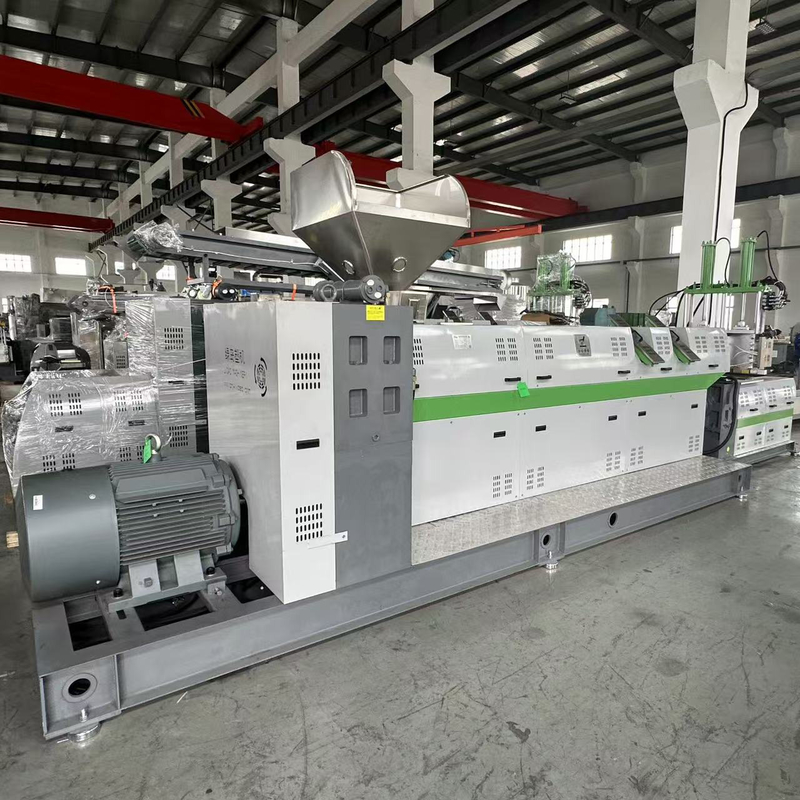

LDD series plastic pelletizing machine

Usage:
This machine can process a variety of thermoplastic plastics,such as PC,PA,PP,ABS,PE,POM,PET etc. Different from LDC series, this kind of machine has two even three stages.
Features:
LDD series is used for PP PE ABS PA PS PET crushed material extruding and granule-making. It adopt the two-step structure to meet the the double-layer filter purpose. It can effectively remove the impurities from the recycling material and fully exhaust the gas.It can produce ample,consolidated and fine luster granules.

Products Description

Working Flow:

YouTube:https://youtu.be/aXZU9gME8ZQ?si=RPO_gloNmmSv7l6d

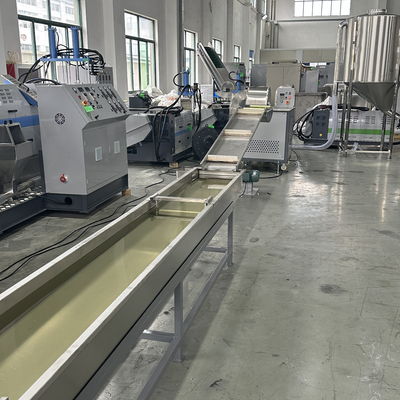

Feeding system→ Main extruder →Main machine screen changer→Baby extruder →Baby machine screen changer→Water cooling tank→Air blow→ Plastic pelletizing→ Packing silo with conveying blower

Product Paramenters

Model	Screw dia.(mm)	Long dia. ratio	Output(kg/h)	Power(kw)	Rotate speed(r/min)
LDD-SJP-80-70	Ø80,Ø70	28:1,10:1	50-100	18.5/7.5	10-75
LDD-SJP-90-85	Ø90,Ø85	28:1,10:1	100-150	22/7.5	10-75
LDD-SJP-100-95	Ø100,Ø95	28:1,10:1	150-200	30/11	10-75
LDD-SJP-110-105	Ø110,Ø105	28:1,10:1	200-250	37/11	10-75
LDD-SJP-120-110	Ø120,Ø110	28:1,10:1	250-300	45/15	10-75
LDD-SJP-130-120	Ø130,Ø120	28:1,10:1	300-350	55/15	10-75
LDD-SJP-140-130	Ø140,Ø130	28:1,10:1	350-400	75/18.5	10-75
LDD-SJP-150-140	Ø150,Ø140	28:1,10:1	400-450	90/22	10-75
LDD-SJP-160-150	Ø160,Ø140	28:1,10:1	450-500	110/30	10-75
LDD-SJP-180-160	Ø180,Ø160	28:1,10:1	500-600	132/37	10-75

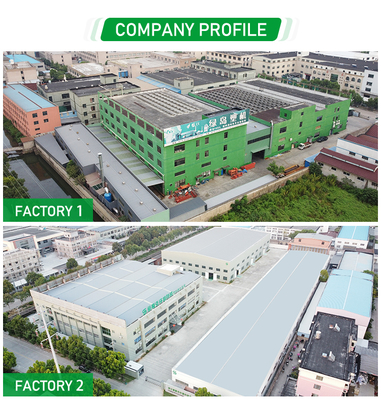

Company Profile

Yuyaolvdao plastic and rubber machinery Co., LTD. specializing in the production of plastic recycling machine line has a history of more than 30 years in the plastic equipment industry, In the plastic equipment manufacturing industry in a leading position.
Our company set up a factory in 1996, under the leadership of professional research and development team, down-to-earth,continuous exploration, according to the different characteristics of various plastic materials to develop a batch of new products, maximize to meet the needs of customers.
In August 2011, the branch company was put into operation, covering an area of nearly 20,000 square meters, realizing leap-forward development.At the same time.We have also added more advanced processing equipment and testing systems, creating a modern technology control center.More importantly, the company introduced professional talents, reorganized the research and development team, and laid a good foundation for the company's long-term development.
At present, our equipment has a number of invention patents, prilling machine through CE safety certification, LDA series recycling machine included in the 2007 national torch plan project, in 2008 the company was rated as ningbo high-tech enterprise, in 2009 the company undertook the national innovation fund project.In 2011,we once again approved as a high-tech enterprise and finished Nation’s Fund Project.In 2013,we attend K show in Germany.In 2015,we are invited by CCTV. In 2017, the company spent millions on metal laser cutting machines.In 2019, a special welding arm was introduced.
Over the past ten years, the company has always adhered to customer satisfaction as the purpose, guided by the market situation, for China's plastic products recycling has made a great contribution.In the future, we will continue to uphold this purpose and make preparations for further opening up the international market.

Exhibition

Product packaging

Wooden Package

Film Package

FAQ

Q:Are you machinery factory or trading company?
A:We are machinery factory with 30 years experience in Ningbo. And we can export machines by ourselves.

Q: Which kind of machine do you make?
A: We mainly produce plastic recycling machine,pelletizing machine and other auxiliary machine , according to the different raw material, different output and different industrial voltage in working place,you can choose different machines.

Q: How can we visit your company and machines?
A:Our factory is located in Ningbo City,near Shanghai and Hangzhou. About 3 hours away from Shanghai International Airport.

Q:Can you customized machine?
A:We can make the products following the customers' requirement,like the shape,size,color,logo and other spec details.
