Name: Lvdao High Efficiency PP PE Film Woven Bags Waste Plastic HDPE LDPE Bag Recycling Pelletizing Making Granules Machine
Brand: Yuyao Lvdao Plastic & Rubber Machinery Co., Ltd.
Availability: InStock

Home Products LDA Series-Dry Film Automatic Crushing & Loading

Lvdao High Efficiency PP PE Film Woven Bags Waste Plastic HDPE LDPE Bag Recycling Pelletizing Making Granules Machine

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Lvdao

Contact Now

Detailed Product Description

Plastic Processed:	HDPE, HDPE/PP, PE/PP, PP, LDPE	Output (kg/h):	100 - 150 Kg/h
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Gearbox, Motor, Inverter	Screw Design:	Single Screw
Voltage:	220V/380V/415V/440V	Dimension(lwh):	1500015002500mm
Power (kw):	37	Warranty:	1 Year
Weight (KG):	5000	Model:	LDA-SJP-100
Applicable Material:	PP PE ABS PS PC	Capacity:	100-150kg/h
Motor:	37kw	Screw Diameter:	100mm
Long Dia.Ratio:	28:1 10:1	Screw Rotate Speed:	10-75r/min
Voltage:	Customized	Color:	Customized
End Product:	Plastic Granules

Product Overview

YouTube：

https://youtu.be/ASEGhHzlT2E?si=29I6aqa_r52tF1O0

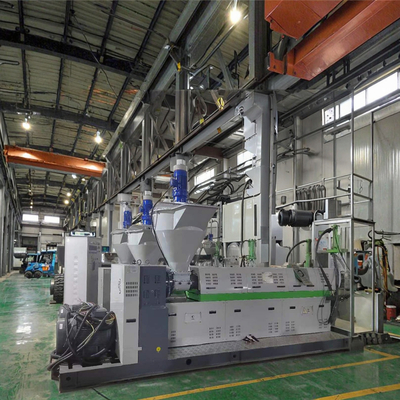

LDA series plastic pelletizing machine

Usage:
This machine is suitable for recycling clean and dry PE,PPmembranes and loose materials espacially for film.

Features:
LDA series is especially suitable for PP PE plastic film which is dry and clean. If the plastic material is totally clean ,the machine single granulating die head is a not-bad option. While the material is a little dirty, the machine with two die head is necessary. There is a filter in every die head. The machine with two die head make the material purer.It crushes and loads material automatically. Automatic loading and crushing,force feeder.

Products Description

Product Paramenters

Model	Screw dia.(mm)	Long dia. ratio	Output(kg/h)	Power(kw)	Rotate speed(r/min)
LDA-SJP-80	Ø80	28:1	50-80	18.5-22	10-75
LDA-SJP-90	Ø90	28:1	80-100	22-30	10-75
LDA-SJP-100	Ø100	28:1	100-120	30-37	10-75
LDA-SJP-110	Ø110	28:1	120-140	37-45	10-75
LDA-SJP-120	Ø120	28:1	140-170	45-55	10-75
LDA-SJP-130	Ø130	28:1	170-200	55-75	10-75
LDA-SJP-140	Ø140	28:1	200-250	75-90	10-75
LDA-SJP-150	Ø150	28:1	250-300	90-110	10-75
